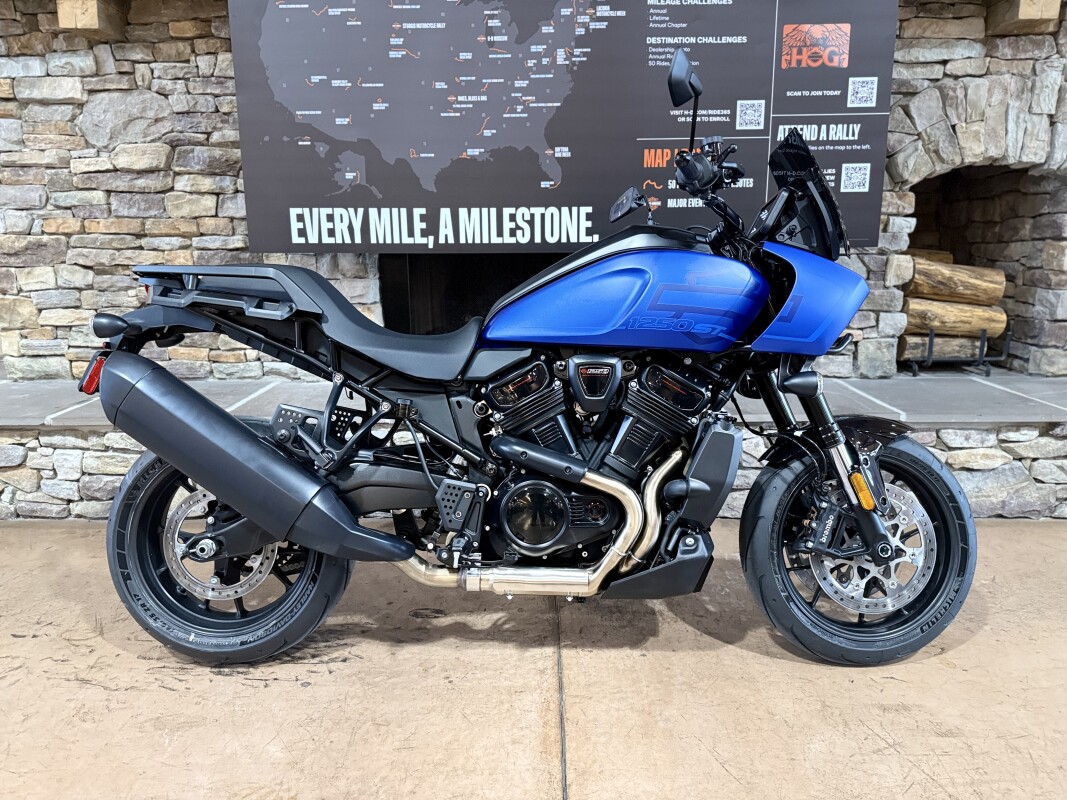

The 2026 Pan America ST is basically the ADV platform refined into a street weapon—fast, aggressive, and built to attack asphalt, not trails.

The MSRP of $20,699 is for a stock 2026 Pan America ST model in Aurora Blue Denim Black Trim, excluding destination charges (including freight, handling, and processing), tax, title, licensing, registration fees, added accessories, trim and color options, and additional dealer charges, if any. Harley-Davidson charges dealers for destination costs and may make a profit on some of those charges. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks.

Specifications

Dimensions

add remove
- Length:

  88.2 in
- Ground clearance:

  6.7 in
- Rake (steering head):

  25
- Trail:

  3.7 in
- Wheelbase:

  62.2 in
- Tires, front specifications:

  120/70ZR17 58W
- Tires, rear specifications:

  180/55ZR17 73W
- Fuel Capacity:

  5.6 gal
- Oil capacity:

  4.75 qt.
- Weight, as shipped:

  511 lbs
- Weight, in running order:

  546 lb
Engine

add remove
- Engine:

  Revolution® Max 1250
- Bore:

  4.1 in
- Stroke:

  2.8 in
- Displacement:

  76.40 in³
- Compression ratio:

  13.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  91.5 ft-lb
- Engine torque (RPM):

  6750
- Horsepower:

  149 HP / 111 kW @ 8750 rpm
- Lean angle, right (deg.):

  37
- Lean angle, left (deg.):

  37
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  46 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  13.11
- Gear ratios (overall) 2nd:

  9.687
- Gear ratios (overall) 3rd:

  7.509
- Gear ratios (overall) 4th:

  6.057
- Gear ratios (overall) 5th:

  5.08
- Gear Ratios (overall) 6th:

  4.436
Chassis

add remove
- Front fork:

  47mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps
- Rear shocks:

  Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression & rebound damping
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, type:

  Front: dual rotor, floating, hub mounted; Rear: solid uniform expansion rotor
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Infotainment

add remove
- Type:

  Color TFT w/ Touch
- Headset specifications (if equipped):

  Bluetooth
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported
